CRBH Crossed Roller Bearings
The CRBH series cross roller bearing has a structure of combining the inner ring and outer ring, which saves the installation sapce and features high rigidity and good roataion accuracy.
The structure of CRBH series cross roller bearing is designed to integrate the inner ring and the outer ring, which saves installation space significantly. The integral ring raceway has a structure for bearing ball insertion on outer ring, and such structure features high rigidity and good rotation accuracy. The sealed series can achieve effect of sufficient lubrication.

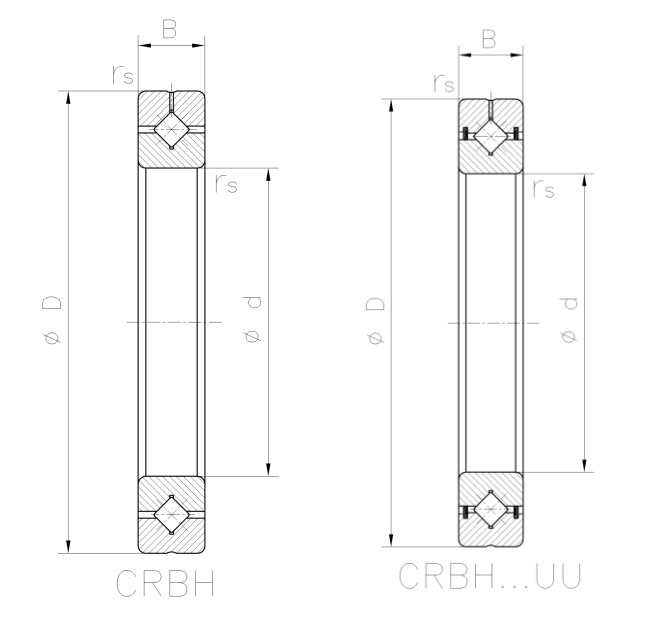

| Part No | Dimension(mm) | Basic Cap (KN) | Weight | ||||
| d | D | B | rsmin | Cr | Cor | kg | |
| CRBH2008 | 20 | 36 | 8 | 0.300 | 3.230 | 3.100 | 0.040 |
| CRBH2508 | 25 | 41 | 8 | 0.300 | 3.630 | 3.830 | 0.050 |
| CRBH3010 | 30 | 55 | 10 | 0.300 | 7.350 | 8.360 | 0.120 |
| CRBH3510 | 35 | 60 | 10 | 0.300 | 7.640 | 9.120 | 0.130 |
| CRBH4010 | 40 | 65 | 10 | 0.300 | 8.330 | 10.600 | 0.150 |
| CRBH4510 | 45 | 70 | 10 | 0.300 | 8.620 | 11.300 | 0.160 |
| CRBH5013 | 50 | 80 | 13 | 0.600 | 16.700 | 20.900 | 0.290 |
| CRBH6013 | 60 | 90 | 13 | 0.600 | 18.000 | 24.300 | 0.330 |
| CRBH7013 | 70 | 100 | 13 | 0.600 | 19.400 | 27.700 | 0.380 |
| CRBH8016 | 80 | 120 | 16 | 0.600 | 30.100 | 42.100 | 0.740 |
| CRBH9016 | 90 | 130 | 16 | 0.600 | 31.400 | 45.300 | 0.810 |
| CRBH10020 | 100 | 150 | 20 | 0.600 | 33.100 | 50.900 | 1.450 |
| CRBH11020 | 110 | 160 | 20 | 0.600 | 34.000 | 54.000 | 1.560 |
| CRBH12025 | 120 | 180 | 25 | 1.000 | 66.900 | 100.000 | 2.620 |
| CRBH13025 | 130 | 190 | 25 | 1.000 | 69.500 | 107.000 | 2.820 |
| CRBH14025 | 140 | 200 | 25 | 1.000 | 74.800 | 121.000 | 2.960 |
| CRBH15025 | 150 | 210 | 25 | 1.000 | 76.800 | 128.000 | 3.160 |
| CRBH20025 | 200 | 260 | 25 | 1.000 | 84.200 | 157.000 | 4.000 |
| CRBH25025 | 250 | 310 | 25 | 1.500 | 69.300 | 150.000 | 4.970 |
-
