Metric Four Point Contact Open Bearings K025-K360XP0 Series (d:25-360mm D: 41mm-400mm)

The metric size type X ball bearing (four-point contact ball structure) can carry double loads from axial and radial directions. The structure of bearing is very popular and three sizes of thickness are available: 8mm, 13mm and 20mm.

Send Inquiry

Metric Four Point Contact Open Bearings K025-K360XP0 Series (d:25-360mm D: 41mm-400mm)

The metric size type X ball bearing (four-point contact ball structure) can carry double loads from axial and radial directions. This kind of bearing is featured with a light weight and narrow width, and the structure of the bearing is the first choice by many end-users. Three sizes of thickness are available: 8mm,13mm and 20mm.

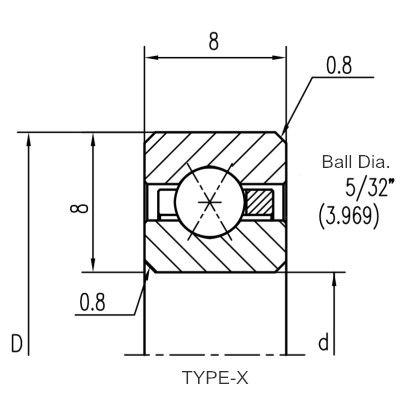

Part No	Dimension（mm)			Basic Cap（kg)				Weight	Interchange
Part No	d	D	H	Cor	Cr	Coa	Ca	Kg	KAYDON
NK02508XP0	25	41	8	334	331	758	469	0.06	K02508XP0
NK05008XP0	50	66	8	555	460	1389	666	0.08	K05008XP0
NK06008XP0	60	76	8	656	506	1641	745	0.09	K06008XP0
NK07008XP0	70	86	8	757	549	1894	819	0.10	K07008XP0
NK08008XP0	80	96	8	859	591	2146	890	0.11	K08008XP0
NK09008XP0	90	106	8	959	631	2399	959	0.13	K09008XP0
NK10008XP0	100	116	8	1060	670	2651	1025	0.14	K10008XP0
NK11008XP0	110	126	8	1162	707	2903	1090	0.15	K11008XP0
NK12008XP0	120	136	8	1262	743	3156	1152	0.16	K12008XP0
NK13008XP0	130	146	8	1363	778	3409	1212	0.18	K13008XP0
NK14008XP0	140	156	8	1465	812	3661	1271	0.19	K14008XP0
NK15008XP0	150	166	8	1565	846	3914	1329	0.20	K15008XP0
NK16008XP0	160	176	8	1666	878	4166	1386	0.20	K16008XP0
NK17008XP0	170	186	8	1767	910	4418	1441	0.20	K17008XP0
NK18008XP0	180	196	8	1868	941	4671	1495	0.21	K18008XP0
NK19008XP0	190	206	8	1944	963	4860	1536	0.21	K19008XP0
NK20008XP0	200	216	8	2045	992	5113	1588	0.22	K20008XP0
NK25008XP0	250	266	8	2550	1133	6375	1840	0.28	K25008XP0
NK30008XP0	300	316	8	3055	1261	7638	2076	0.35	K30008XP0
NK32008XP0	320	336	8	3257	1310	8143	2166	0.39	K32008XP0
NK34008XP0	340	356	8	3459	1350	8648	2255	0.42	K34008XP0
NK36008XP0	360	376	8	3636	1396	9089	2330	0.46	K36008XP0

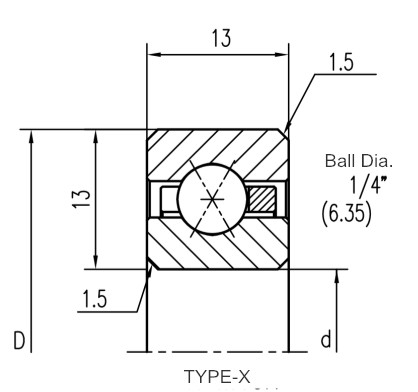

Part No	Dimension（mm)			Basic Cap（kg)				Weight	Interchange
Part No	d	D	H	Cor	Cr	Coa	Ca	Kg	KAYDON
NK02513XP0	25	51	13	696	689	1293	869	0.13	K02513XP0
NK05013XP0	50	76	13	919	910	2263	1226	0.20	K05013XP0
NK06013XP0	60	86	13	1099	1014	2747	1236	0.23	K06013XP0
NK07013XP0	70	96	13	1228	1074	3070	1547	0.26	K07013XP0
NK08013XP0	80	106	13	1358	1133	3393	1653	0.28	K08013XP0
NK09013XP0	90	116	13	1551	1224	3878	1808	0.31	K09013XP0
NK10013XP0	100	126	13	1681	1279	4201	1906	0.34	K10013XP0
NK11013XP0	110	136	13	1875	1364	4686	2050	0.37	K11013XP0
NK12013XP0	120	146	13	2006	1415	5010	2144	0.40	K12013XP0
NK13013XP0	130	156	13	2133	1466	5333	2235	0.43	K13013XP0
NK14013XP0	140	166	13	2327	1544	5817	2368	0.46	K14013XP0
NK15013XP0	150	176	13	2456	1592	6141	2455	0.48	K15013XP0
NK16013XP0	160	186	13	2586	1639	6464	2541	0.51	K16013XP0
NK17013XP0	170	196	13	2780	1711	6949	2666	0.54	K17013XP0
NK18013XP0	180	206	13	2909	1756	7272	2748	0.57	K18013XP0
NK19013XP0	190	216	13	3038	1800	7595	2829	0.60	K19013XP0
NK20013XP0	200	226	13	3232	1868	8080	2948	0.63	K20013XP0
NK25013XP0	250	276	13	4008	2119	10019	3403	0.77	K25013XP0
NK30013XP0	300	326	13	4719	2327	11796	3794	0.91	K30013XP0
NK32013XP0	320	346	13	5042	2419	12605	3966	0.97	K32013XP0
NK34013XP0	340	366	13	5365	2508	13412	4133	1.02	K34013XP0
NK36013XP0	360	386	13	5688	2594	14220	4298	1.08	K36013XP0

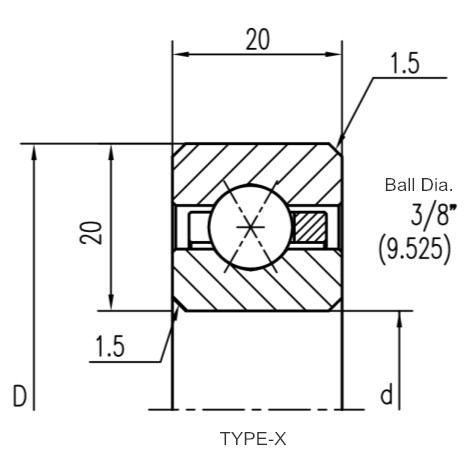

Part No	Dimension（mm)			Basic Cap（kg)				Weight	Interchange
Part No	d	D	H	Cor	Cr	Coa	Ca	Kg	KAYDON
NK02520XP0	25	65	20	1518	1503	2545	1789	0.34	K02520XP0
NK05020XP0	50	90	20	1845	1827	3999	2418	0.52	K05020XP0
NK06020XP0	60	100	20	1906	1887	4363	2562	0.59	K06020XP0
NK07020XP0	70	110	20	2071	2050	5090	2839	0.66	K07020XP0
NK08020XP0	80	120	20	2181	2111	5454	2973	0.73	K08020XP0
NK09020XP0	90	130	20	2473	2263	6181	3231	0.80	K09020XP0
NK10020XP0	100	140	20	2618	2323	6545	3357	0.87	K10020XP0
NK11020XP0	110	150	20	2909	2466	7272	3601	0.94	K11020XP0
NK12020XP0	120	160	20	3200	2603	7999	3837	1.01	K12020XP0
NK13020XP0	130	170	20	3345	2600	8363	3953	1.07	K13020XP0
NK14020XP0	140	180	20	3636	2791	9090	4179	1.15	K14020XP0
NK15020XP0	150	190	20	3781	2845	9453	4290	1.22	K15020XP0
NK16020XP0	160	200	20	4072	2970	10180	4507	1.30	K16020XP0
NK17020XP0	170	210	20	4363	3023	10907	4719	1.37	K17020XP0
NK18020XP0	180	220	20	4508	3143	11271	4823	1.44	K18020XP0
NK19020XP0	190	230	20	4800	3260	11999	5029	1.51	K19020XP0
NK20020XP0	200	240	20	4945	3309	12362	5130	1.57	K20020XP0
NK25020XP0	250	290	20	6108	3731	15271	5906	2.10	K25020XP0
NK30020XP0	300	340	20	7272	4119	18179	6633	2.30	K30020XP0
NK32020XP0	320	360	20	7708	4255	19270	6897	2.44	K32020XP0
NK34020XP0	340	380	20	8144	4388	20361	7154	2.58	K34020XP0
NK36020XP0	360	400	20	8581	4588	21452	7408	2.73	K36020XP0
