RE Crossed Roller Bearings

The RE series crossed roller bearing is a special type bearing with split inner ring and rotating outer ring. It is the type of bearing with a split inner ring and an integrated outer ring.It is suitable for the position in which requires high rotation accuracy of the outer ring.

Send Inquiry

RE Crossed Roller Bearings

The RE series crossed roller bearing is a special type bearing with split inner ring and rotating outer ring. The structure of RE series bearing is that the inner ring is a split one while the outer ring is an integrated design. The optimized preload has a higher rigidity, and higher accuracy for guiding roller rotation. It is suitable for the position in which requires high rotation accuracy of the outer ring.

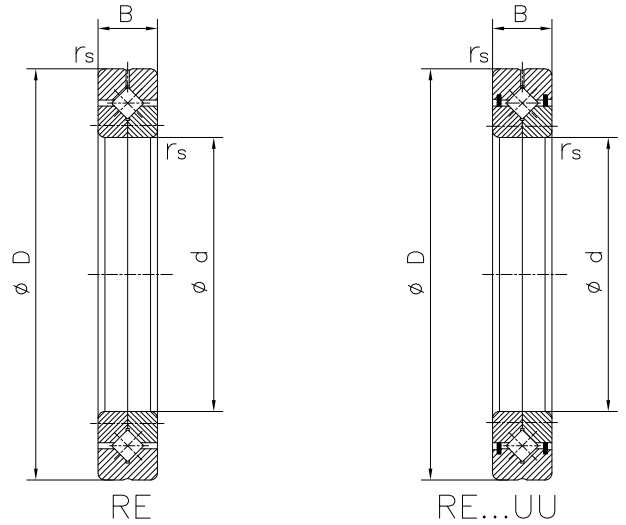

Part No	Dimension(mm)				Basic Cap (KN)		Weight
Part No	d	D	B	rsmin	Cr	Cor	kg
RE2008	20	36	8	0.500	3.230	3.100	0.040
RE2508	25	41	8	0.500	3.630	3.830	0.050
RE3010	30	55	10	0.600	7.350	8.360	0.120
RE3510	35	60	10	0.600	7.640	9.120	0.130
RE4010	40	65	10	0.600	8.330	10.600	0.150
RE4510	45	70	10	0.600	8.620	11.300	0.170
RE5013	50	80	13	0.600	16.700	20.900	0.290
RE6013	60	90	13	0.600	18.000	24.300	0.330
RE7013	70	100	13	0.600	19.400	27.700	0.380
RE8016	80	120	16	0.600	30.100	42.100	0.740
RE9016	90	130	16	1.000	31.400	45.300	0.810
RE10016	100	140	16	1.000	31.700	48.600	0.830
RE10020	100	150	20	1.000	33.100	50.900	1.450
RE11012	110	135	12	0.600	12.500	24.100	0.400
RE11015	110	145	15	0.600	23.700	41.500	0.750
RE11020	110	160	20	1.000	34.000	54.000	1.560
RE12016	120	150	16	0.600	24.200	43.200	0.720
RE12025	120	180	25	1.500	66.900	100.000	2.620
RE13015	130	160	15	0.600	25.000	46.700	0.720
RE13025	130	190	25	1.500	69.500	107.000	2.820
RE14016	140	175	16	1.000	25.900	50.100	1.000
RE14025	140	200	25	1.500	74.800	121.000	2.960
RE15013	150	180	13	0.600	27.000	53.500	0.680
RE15025	150	210	25	1.500	76.800	128.000	3.160
RE15030	150	230	30	1.500	100.000	156.000	5.300
RE16025	160	220	25	1.500	81.700	135.000	3.140
RE17020	170	220	20	1.500	29.000	62.100	2.210
RE18025	180	240	25	1.500	84.000	143.000	3.440
RE19025	190	240	25	1.000	41.700	82.900	2.990
RE20025	200	260	25	2.000	84.200	157.000	4.000
RE20030	200	280	30	2.000	114.000	200.000	6.700
RE20035	200	295	35	2.000	151.000	252.000	9.580
RE22025	220	280	25	2.000	92.300	171.000	4.100
RE24025	240	300	25	2.500	68.300	145.000	4.500
RE25025	250	310	25	2.500	69.300	150.000	4.970
RE25030	250	330	30	2.500	126.000	244.000	8.100
RE25040	250	355	40	2.500	195.000	348.000	14.800
RE30025	300	360	25	2.500	76.300	178.000	5.880
RE30035	300	395	35	2.500	183.000	367.000	13.400
RE30040	300	405	40	2.500	212.000	409.000	17.200
RE35020	350	400	20	2.500	54.100	143.000	3.900
RE40035	400	480	35	2.500	156.000	370.000	14.500
RE40040	400	510	40	2.500	241.000	531.000	23.500
RE45025	450	500	25	1.000	61.700	182.000	6.600
RE50025	500	550	25	1.000	65.500	201.000	7.300
RE50040	500	600	40	2.500	239.000	607.000	26.000
RE50050	500	625	50	2.500	267.000	653.000	41.700
RE60040	600	700	40	3.000	264.000	721.000	30.600
